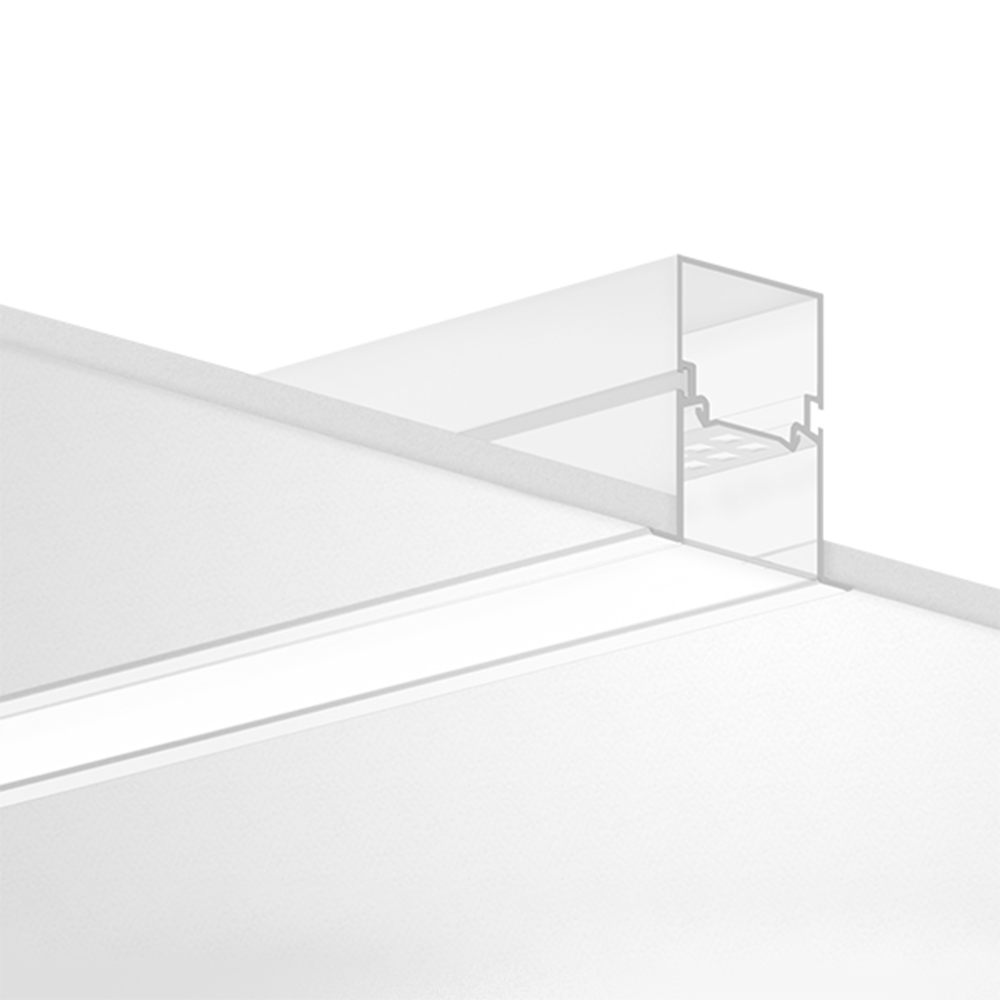

2R Recessed

by American Linear Lighting

Compact Fixture Housing One-Piece Extruded Aluminum Housing 0-10V Dimming to 1% Standard 112.5 Lumens per Watt at 90 CRI

Specification Sheet Product Page

Specsheets

ALL-2R-SPECIFICATIONS.pdf

Photometry

2R_IES.zip

Aperture

2 In.

CCT

3000K , 3500K , 4000K

CRI

90+ CRI, 90 CRI

Color / Finish

Black , White

Controls Options

Daylight Occupancy Sensor

Dimming Protocol

0-10 V , DALI

Dimming Range

Distribution

Direct

Efficacy

112.5 lm/w

Lamp Base

Integrated

Lamp Life

90000 hrs

Lamp Source

LED

Listings

UL , cUL

Lumens / Linear Ft.

250 - 1250 Lm/ft

Materials

Acrylic , Die-Cast Aluminum , Steel

Mounting

Recessed

Ratings & Compliance

Build America Buy America (BABA) , Buy American Act (BAA) , Chicago Plenum , Damp , IC Rated

Voltage

120-277 V , 347 V , UNV

Warranty

10 yr

Watts

37.4 w
